加熱器主要將過濾器及呼吸器加熱。防止形成冷凝水，使濾芯排氣通暢；防止因濾芯的堵塞而造成罐內排水時形成真空，從而造成罐體變形、吸癟重大事故；防止濾芯發霉，符合GMP、FDA生產的規范要求。

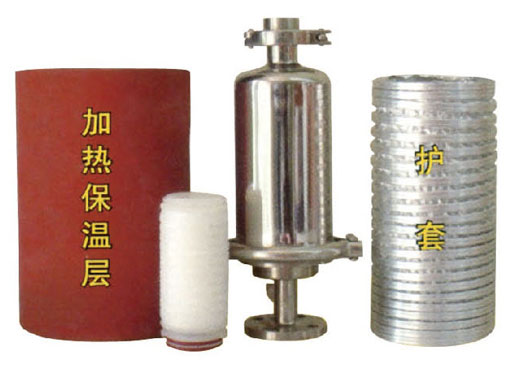

■ 形式：用加熱軟板包裹在圓柱形不銹鋼呼吸器外圍。

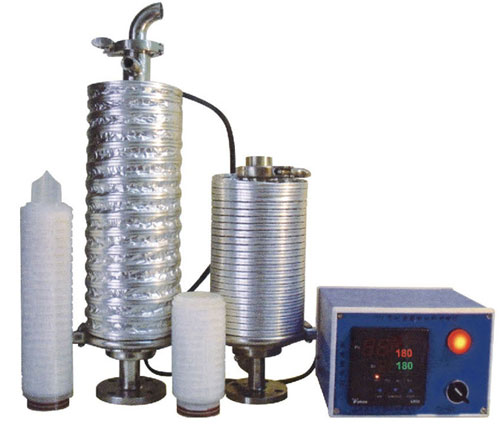

■ 結構：由電加熱板及保溫層發泡硅膠、溫度控制儀兩部分組成。
■ 作用：通過高溫將不銹鋼殼體內濾芯加熱烘干，使潮濕狀態下的濾芯干燥，防止染菌。
■ 環保要求：所用材料都符合GMP及FDA標準。
特點
■ 加熱層及保溫層一體復合，節電節能。
■ 可利用現有的呼吸器，將加熱套包上即可。
■ 控制箱可任意移動、定位。
■ LED數顯控溫，可自行設定溫度。
■ 外殼可自行排水。
■ 加熱器表面可安全觸摸
典型應用
■ 發酵罐呼吸器
■ 制藥、食品
■ 發酵
■ 過濾和純化流程
■ 儲罐容器呼吸器
■ 生物制品
■ 注射用水
■ 貯罐
Heater heating main
filter and respirator. Prevent the formation of
condensation water, smooth filter and exhaust
prevent tank drain caused by the clogging of the
filter is formed when the vacuum, resulting in
deformation of tanks, draw a flat major;
prevents filter mold, conform to GMP, FDA's
regulatory requirements.
■ Form: use heated soft-wrapped in a cylindrical
stainless steel perimeter of breathing
apparatus.
■ Structure: by electric heating panels and
insulation foam molds, temperature control
device composed of two parts.
■ Role: by high-temperature stainless steel
shell filter heating and drying, the filter
drier in wet state, to prevent infection.
■ Environmental requirements: materials used are
in accordance with GMP and FDA standards.
Features
■ Heating and insulation in one complex,
power-saving energy-saving.
■ Leverages existing respirator, heated on the
package.
■ Control box can be moved freely, position.
■ LED digital display temperature control, you
can set its own temperature.
■ Shell may drain on their own.
■ Heater surface safe to touch
Typical applications
■ Fermentation tank respirator
■ Pharmaceutical, food
■ Fermentation
■ Filtration and purification process
■ Tank container apparatus
■ Biological products
■ Water for injection
■ Storage tank
 |
